Serial Transmission System

Click on the series name to display the catalog. Click on CAD to search the CAD data.

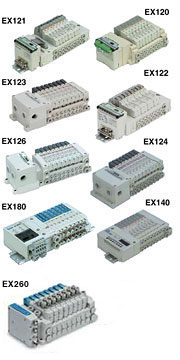

Serial Transmission System EX

Integrated Type / For Output

*1: Compatible with CC-Link only
*2: Compatible with CC-Link and DeviceNetTM only

Series/CAD Enclosure Communication protocol Applicable valve
EX120 CAD IP20 DeviceNetTM
CC-Link
OMRON Corp. (CompoBus/S)
SUNX Ltd. (S-LINK)
NKE (Wiring saving system)		 SV1000,2000,3000,4000 VQ1000,2000
EX121 CAD IP20 SY3000,5000
EX122 CAD IP20 SY3000,5000
EX123 CAD IP65 VQ2000,4000,5000
EX124 CAD IP65 VQ2000,4000,5000
EX126 CAD IP67*1 SV1000,2000,3000 VQC1000,2000,4000
EX140  IP20 SZ3000,SQ1000,2000
EX180 CAD IP20*2 SJ2000,3000
EX260 CAD IP67 DeviceNetTM
PROFIBUS DP
CC-Link
EtherCAT
PROFINET		 SY3000/5000
SV1000/2000/3000
VQC1000/2000/4000
IP40 S0700

Serial Transmission System EX

Integrated Type / For Input/Output

*1: Compatible with the EX250 only

Series/CAD Enclosure Communication protocol Applicable valve
EX240 CAD IP65 DeviceNetTM
PROFIBUS DP
CC-Link*
AS-Interface*
CANopen*
ControlNet*
EtherNet/IPTM*		 VQC4000,VQ2000,4000
EX250 CAD IP67 SV1000,2000,3000 VQC1000,2000,4000
S0700 (IP40)

Fieldbus System EX

For Input/Output

Series/CAD Enclosure Communication protocol Applicable valve
EX600 CAD IP67 DeviceNetTM
PROFIBUS DP
CC-Link
EtherNet/IPTM
EtherCAT		 SV1000,2000,3000
VQC1000/2000/4000
S0700 (IP40)
SY3000,5000

Serial Transmission System EX

Decentralized Serial Wiring

*Compatible with the EX500 only

Series/CAD Enclosure Communication protocol Applicable valve
EX500 CAD IP65 DeviceNetTM
PROFIBUS DP
CC-Link
EtherNet/IPTM*		 SV1000,2000,3000,4000 VQC1000,2000,4000
S0700 (IP40)
EX510 CAD IP20 SJ2000,3000
SY3000,5000,7000,9000
SYJ3000,5000,7000
SQ1000,2000
VQ1000,2000
VQZ1000,2000,3000
S0700

PC Wiring System PCW



Series Features
PCW
  • The PC wiring system simplifies wiring between a PLC and all types of connected equipment.

M8 / M12 Connector PCA/EX9/EX500



Series/CAD Features
PCA CAD
  • Communication Cable/Connector:
  • Conforming to IEC61076-2-101 and IEC60947-5-2
  • IP67 (IEC60529)
  • Fieldwireable connectors: no exclusive tools, reduction in wiring time
  • SPEEDCON: Just insert the connector and make 1/2 rotation.
EX9 CAD
EX500
