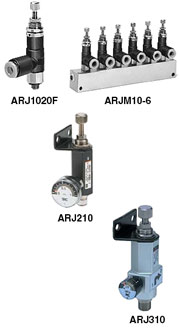

Miniature Regulator ARJ



Series/CAD Features Port size Set pressure
(MPa)
ARJ1020F CAD Direct operated relieving style
with backflow function		 M5 0.1 to 0.7

Features
  • Compact and lightweight (16 g).
  • Low cracking pressure: 0.02 MPa
  • Standard model equipped with backflow function.
  • Manifold base (Option)

ARJ210 CAD Direct operated
relieving type		 Male thread: 1/8
Female thread: M5 x 0.8		 0.2 to 0.7

Features
  • Lightweight with an aluminum body (60 g).

ARJ310 CAD Direct operated
relieving type		 IN: 1/8 (Male thread),
M5 x 0.8 (Female thread)
OUT: 1/8 (Female thread)		 0.2 to 0.7

Features
  • Compact and lightweight (body 65 g).
  • Short pitch mounting is possible: Mounting pitch 18.5 mm
  • Series with One-touch fittings.

Pilot Operated Regulator AR



Series/CAD Port size Set pressure (MPa)
AR425 to 925 CAD 1/4,3/8,1/2,3/4,11/4,11/2,2 0.05 to 0.83
AR435 to 935 CAD 0.02 to 0.2
Features
  • Internal pilot operated style relieving type

MR Unit (Regulator with Mist Separator) AMR



Series/CAD Port size Set pressure (MPa)
AMR CAD 1/4,3/8,1/2,3/4,1 0.05 to 0.85
Features
  • Combined with mist separator and regulator.
  • Filtration: 0.3 μm

Compact Manifold Regulator ARM5



Series/CAD Features Applicable tubing bore size Set pressure
(MPa)
Metric size Inch size
ARM5A CAD Manifold
specifications		 Common
air supply		 φ4,
φ6,
φ8		 φ5/32,
φ1/4,
φ5/16		 0.05 to 0.7
ARM5B CAD Individual
air supply		 φ4,
φ6		 φ5/32,
φ1/4
ARM5S CAD Single unit
specifications
Features
  • Width: 14 mm
  • Can select two kinds of mountings.
  • Direct mounting and DIN rail mounting.
  • Standard model equipped with backflow function.
  • Can select a variety of One-touch fitting sizes.

Compact Manifold Regulator ARM10/11



Series/CAD Features Applicable tubing bore size Set pressure
(MPa)
Metric size Inch size
ARM11A CAD Manifold
specifications		 Common
air supply		 φ4 to φ10 φ5/32 to φ3/8 0.05 to 0.7
ARM11B CAD Individual
air supply		 φ4,φ6 φ5/32,φ1/4 0.05 to 0.7
ARM10 CAD Single unit
specifications		 Standard φ4,φ6 φ5/32,φ1/4 0.05 to 0.7
ARM10F CAD Knob
front face		 φ4,φ6 φ5/32,φ1/4 0.05 to 0.7
Features
  • Free selection in response to positioning conditions
    Knob positions: Top/Front/Bottom
    Piping directions: Up/Down
    One-touch fitting varieties: Straight/Elbow
  • Varieties and sizes of One-touch fittings can be changed.
  • Standard model equipped with backflow function
  • Compatible with digital pressure switch

Manifold Regulator ARM



Series/CAD Features Port size Set pressure (MPa)
ARM1000,2000 CAD Manifold (Common IN,
Individual IN)
Direct operated
relieving style
With backflow function		 1/8 0.05 to 0.7

Features
  • With a φ15 compact pressure gauge. (Option)
  • Standard model equipped with backflow function.

ARM2500,3000 CAD Manifold (Common IN,
Individual IN)
Modular type		 1/4,3/8 0.05 to 0.85

Features
  • A modular type that can be freely mounted on a manifold station.
  • Optimal for central pressure control.
  • Uses a One-touch lock handle.

Direct Operated Precision Regulator ARP



Series/CAD Port size Set pressure
ARP20 (K) CAD 1/8, 1/4 0.005 to 0.4 MPa
0.005 to 0.2 MPa
0.005 to 0.6 MPa
ARP30 (K) CAD 1/4, 3/8
ARP40 (K) CAD 1/4, 3/8, 1/2
Features
  • Setting sensitivity: 0.2% F.S. or less
  • Energy saving, reduces air consumption 80% (SMC comparison)
  • Repeatability: ±1% F.S. or less (or ±3 kPa or less)
  • With backflow function (ARP20K/30K/40K)
    Can be mounted between a solenoid valve and a cylinder.

Precision Regulator IR



Series/CAD Port size Set pressure (MPa)
IR1000
CAD
3D CAD		 1/8 0.005 to 0.2
0.01 to 0.4
0.01 to 0.8
IR2000
CAD
3D CAD		 1/4
IR3000
CAD
3D CAD		 1/4,3/8,1/2 0.01 to 0.2
0.01 to 0.4
0.01 to 0.8
Features
  • Tension control
  • Contact pressure control
  • Setting sensitivity: 0.2% F.S. or less
  • Repeatability: ±0.5% F.S. or less

Vacuum Regulator IRV



Series/CAD Port size Set pressure (kPa)
IRV10
CAD
3D CAD		 φ6, φ8, φ1/4, φ5/16 -100 to -1.3
IRV20
CAD
3D CAD		 φ6, φ8, φ10, φ1/4, φ5/16, φ3/8
Features
  • Allows adjustment of vacuum line pressure.
  • Single sided connections series
  • Mass reduced by 20%(Compared with the existing IRV2000 with IRV20 fitting)
    Built-in One-touch fittings
  • Easy to attach/detach the pressure gauge or digital pressure switch due to attachment by clip.
  • Mounting direction of the pressure gauge or digital pressure switch can be changed. (Standard connections only)
  • Mounting angle of the pressure gauge or digital pressure switch can be changed easily (in 60 degree increments).

Power Valve Precision Regulator VEX



Series/CAD Port size Set pressure (MPa)
VEX1x30,1x33 CAD M5 x 8
1/8,1/4,3/8,1/2,
3/4,1,11/4,11/2,2		 0.05 to 0.7
(M5:0.01 to 0.7)
Features
  • Large capacity exhaust regulator.
  • Setting sensitivity: 0.2% F.S. or less
  • Repeatability: ±0.5% F.S. or less

Clean Regulator SRH



Series/CAD Relief mechanism Port size Set pressure (MPa)
SRH
CAD
3D CAD		 Non-relief Rc1/8,1/4,3/8,1/2
9/16-18UNF,
7/8-14UNF		 Low pressure type:
0.02 to 0.2
High pressure type:
0.05 to 0.7
Relief Rc1/8,1/4,3/8,1/2
Features
  • Contamination controlled stainless steel regulator
  • Oil-free
  • Two types of diaphragm materials: PTFE, Fluororubber

Precision Clean Regulator SRP



Series/CAD Port size Set pressure (MPa)
SRP CAD M5,1/8 Low pressure type: 0.005 to 0.2
High pressure type: 0.01 to 0.4
Features
  • High precision low flow consumption stainless steel regulator
  • Bleed air flow 0.5 L/min (ANR) or less (0.2 MPa at outlet pressure)
  • Setting sensitivity: 0.3% F.S.
  • Repeatability: 1% F.S.

Clean Regulator / Fluororesin Type SRF



Series/CAD Applicable tubing O.D. Set pressure (MPa)
Metric size Inch size
SRF CAD Integrated
with fitting		 φ4 to φ19 φ1/8 to φ3/4 0.02 to 0.4
With nut Fitting size: 2 to 6
Tube
extension		 --- Tubing O.D.
φ1/4 to φ3/4
Features
  • Wetted parts
    Body: New PFA
    Diaphragm: PTFE
  • Recommended maximum flow rate: 20 L/min (SRF50)
    (0.3 MPa at inlet pressure, fluidization)

Regulator for 2 MPa ARX



Series/CAD Port size Set pressure (MPa)
ARX20 CAD 1/4,1/8 0.05 to 0.85
Features
  • Compatible with inlet supply pressure of 2.0 MPa.
  • Ideal for discharge pressure adjustment on a small compressor.
  • Piston type
  • Ideal for the pressure adjustment of air blowing applications.

Direct Operated Regulator for 6.0 MPa (Relieving Type) VCHR



Series/CAD Type Port size Set pressure (MPa)
VCHR30/40 CAD Direct operated regulator
(Relieving type)		 G3/4,1,11/2 0.5 to 5.0
(Max. operating pressure 6.0)
Features
  • Service life: 10 million times
    Improved durability in high pressure environments using a polyurethane elastomer poppet.
  • Uses NSF-H1 approved grease at guide rings (sliding parts).
  • Improved durability using a metal seal type relief valve.
  • Uses special fluororesin seal for sliding parts.
    Stable unattached response, and not easily affected by pressure.
