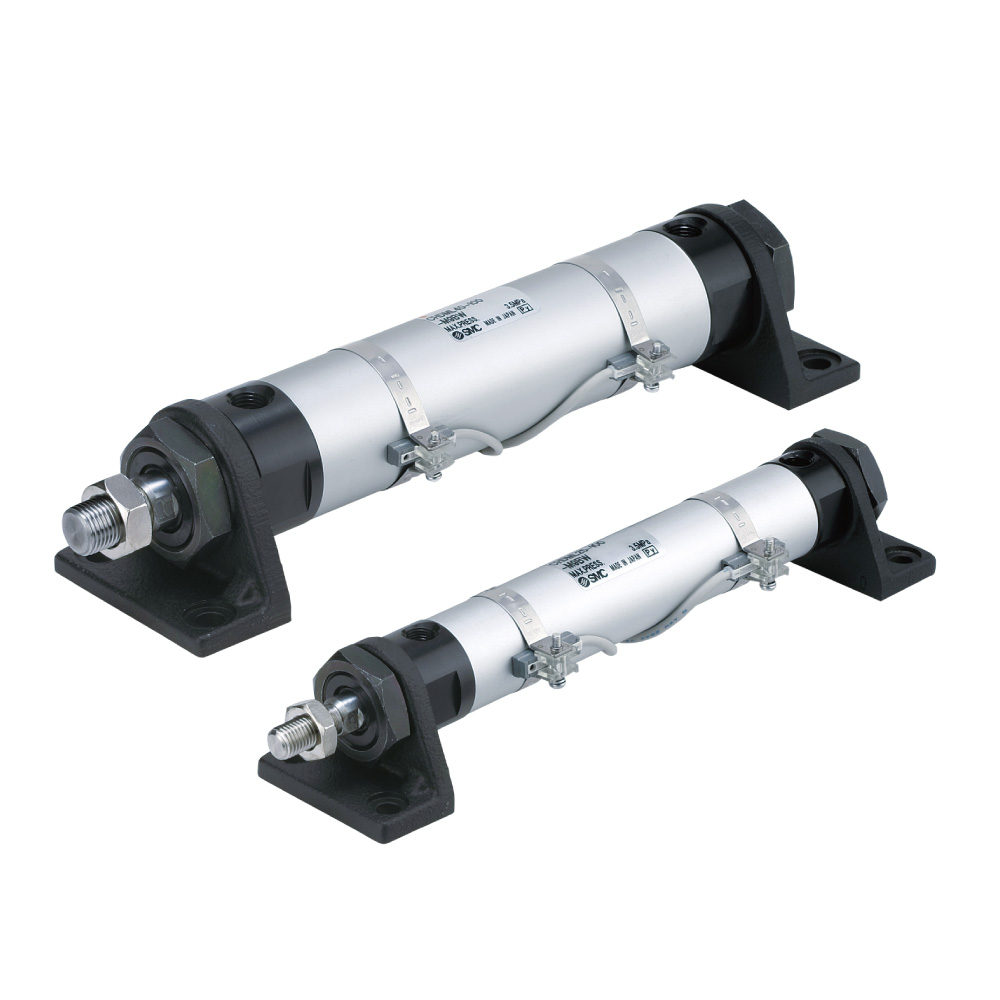

Series image - for reference only

Part Builder Close Match Items CAD Drawings Email Item Add to Formal Quote
Normal View Purchasing View

SMC CHMC32-175 cylinder, round body hydraulic, chm, HYDRAULIC CYLINDER, CH, CC, HC

$7610

Please allow 7 to 10 weeks for delivery.

  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:
Part #: CHMC32-175
Series Catalog

CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.

  • Round type low pressure hydraulic cylinder
  • Bore sizes *: 20, 25, 32, 40
  • Standard strokes *: 25 to 800
  • 3.5MPa
  • 5 mounting types
  • Auto switch capable

Downloads

CAD Downloads

CAD Files from ETECH

View CAD Models

View 3D Model
Price: $76.10
Close match in stock Inventory
Some out of stock items can be obtained in 1 to 6 weeks. Contact us for more information
