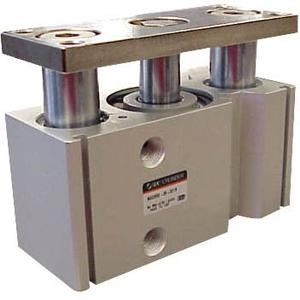

The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two basic models include a self-lubricating slide bushing and a linear ball bearing style. The 100mm slide bushing model can stop a load of 3,000 lbs. traveling at 55ft/min, or smoothly lift a centered load of 1,000 lbs. with a 40% safety factor. The overall package is very compact, and pre-tapped mounting holes ensure easy attachment of fixtures. Mounts on side or bottom. The MGQ offers bore sizes from 12 to 100mm and is switch capable.
- Compact guide cylinder
- Ball bushing bearing
- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 *
- Strokes from 10mm through 200mm depending upon bore size
- Variety of switches and a variety of lead wire lengths
