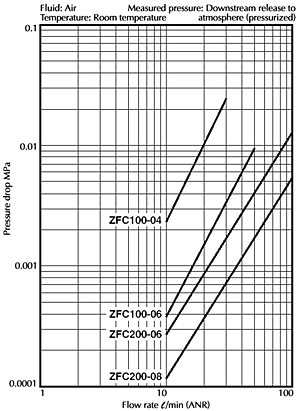

flow chart



Flow Rate and Effective Sectional Area

Model SCAP330F SCAP430F SCAP530F SCAP630F
Tube outside
diameter		 Millimeter size ø6, ø8 ø6 ø8 ø8 ø10 ø10 ø12
Inch size ø1/4"
ø5/16"		 — ø1/4"
ø5/16"		 ø5/16" ø3/8" — ø3/8"
ø1/2"
Controlled flow
(Free flow)		 Flow rate l /min
(ANR)(N l /min)		 180 330 350 600 750 1100 1190
Effective sectional
area mm2		 2.9 5.2 5.4 9.3 11.6 17 18.4

Note: The indicated flow rate values are at a pressure of 0.5MPa, and a temperature of 20 C.
