SMC NCM088-03B51052 assy, head cover b sp ext, NCM ROUND BODY CYLINDER***

$9.30
  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:

Please call 800-799-4568 or email to confirm availability.

Part #: NCM088-03B51052
Series Catalog

Description

Series NCM stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 4 mounting styles * as well as double rod and spring return or spring extend models. The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16in. to 2in. and standard strokes from 1/2in. to 12in..

  • Double acting single rod
  • Bore sizes *: 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
  • Mounts: nose, rear, end, rod, block
  • Variety of switches and lead wire lengths
  • Optional Rod Boot

Downloads

CAD Downloads

CAD Files from ETECH

View CAD Models

View 3D Model
Close match in stock Availability Price Quantity
Some out of stock items can be obtained in 1 to 6 weeks. Contact us for more information

Frequently Purchased Together

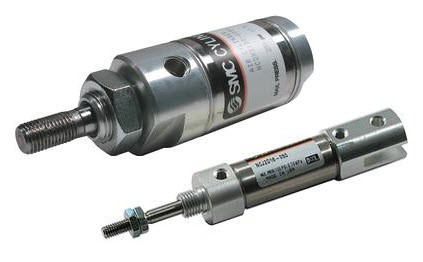

SERIES IMAGE-FOR REFERENCE ONLY
