SMC SZ3260-5LOZ-C6 valve, plug in, SJ2000/SJ3000/SZ3000***

$70.50
  • Available to Ship Today*:
  • Available to Ship Tomorrow*:
  • Available to Ship in 5 Days*
  • Available to Ship in 7 Days*:
Part #: SZ3260-5LOZ-C6
Series Catalog

Description

Series SZ3000 is a 5 port solenoid valve, body ported type with a cassette style manifold. The SZ series offers high reliability and long life of 50 million cycles or more. The connector entry direction can be changed from top to side with a simple operation. Low power consumption and a fast response time of 10ms are obtained with a unique pilot valve construction.

  • Fluid: Air
  • Operating pressure range: up to 0.7Mpa
  • Valve effective area mm? (Cv factor):
    P to A/B 3.0 to 3.7 (0.17 to 0.21)
    A/B to R 3.2 to 3.9 (0.18 to 0.22)
  • Coil rated voltage: 24, 12, 6, 5, 3DC
  • Response time: minimum 10 or less

Downloads

CAD Downloads

CAD Files from ETECH

View CAD Models

View 3D Model
Close match in stock Inventory
Some out of stock items can be obtained in 1 to 6 weeks. Contact us for more information
Price: $70.50

Frequently Purchased Together

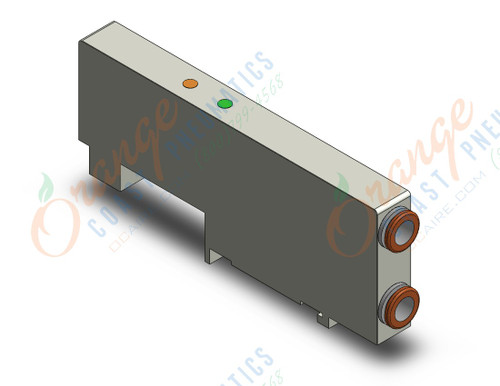

SERIES IMAGE-FOR REFERENCE ONLY
