ASP Series Flow Control

Speed Controller with Pilot Operated Check Valve

Temporary Intermediate Stops And Control of Actuator Speed

Series ASP is a speed controller with an integrated pilot operated check valve. This combination makes it possible to control cylinder speeds and permits temporary intermediate stops. The ASP is standard with electroless nickel plating on all brass parts and allows 360 degree freedom for tube mounting direction. The X352 variation incorporates a manual residual pressure relief valve to enable a release of the air trapped in the actuator.

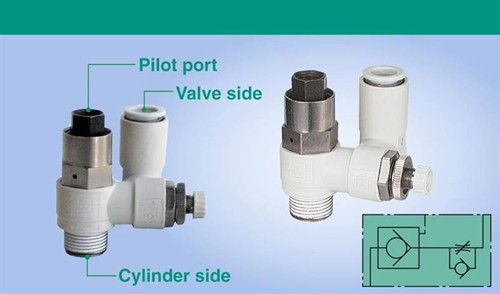

ASP02

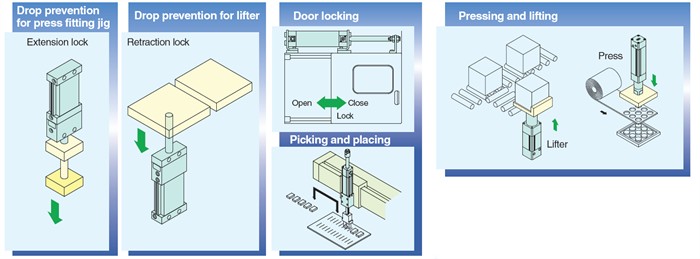

Applications

ASP01

Product Features

  • Pilot check functions with 50% of operating pressure
  • One-touch connection for supply air only
  • Universal type connection standard
  • Available in PT, NPT, and G thread (standard)

    • Applicable Industries

    • Automotive/Heavy Vehicle
    • Food/Beverage
    • Forestry/Paper Products
    • Material Handling
    • Packaging
    • Petroleum/Chemical
    • Steel
    • Textile

    Configuration: Part Number
